CW-1510

產品介紹

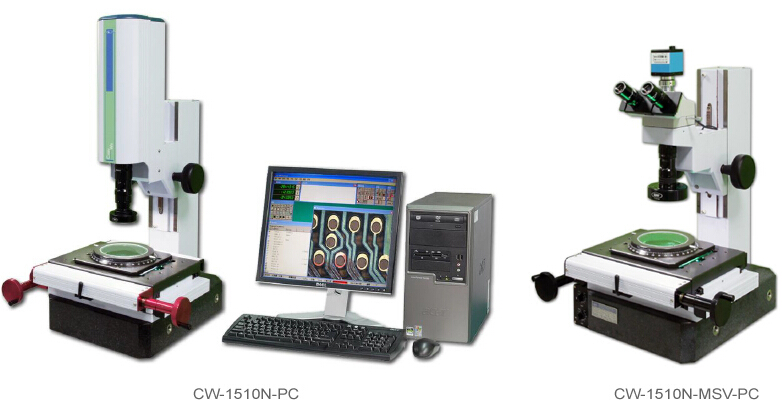

	CW-1510N	CW-1510N-PC	CW-1510N-MSV-PC
量測範圍	150x100x160 mm ( X,Y,Z)	150x100x130 mm ( X,Y,Z)	150x100x130 mm ( X,Y,Z)
解析讀數	Scales 0.001 mm in 2 Axes (二軸)	Scales 0.001 mm in 2 Axes (二軸)	Scales 0.001 mm in 2 Axes (二軸)
顯示器	Heidenhain ND1200
影像系統	1/3" CCD+Zoom+19" LCD Monitor+Cross-Hair	1/3" CCD+Zoom	1/3" CCD+Zoom
放大倍率	10x...100x (Option 20x~200x)	10x...100x (Option 20x~200x)	10x...100x (Option 20x~200x)
表面燈源	White LED Light (Option of Coaxial Light )	White LED Light (Option of Coaxial Light )	White LED Light (Option of Coaxial Light )
輪廓底光	綠色 LED	綠色 LED	綠色 LED
量測精度	U1=3+L/200 um	U1=3+L/200 um	U1=3+L/200 um
重複精度	0.002 mm	0.002 mm	0.002 mm
傳動方式	無牙螺桿+線性滑軌	無牙螺桿+線性滑軌	無牙螺桿+線性滑軌
操作方式	手動	手動	手動
工件限高	100 mm	100 mm	100 mm
工作限重	5 kgs	5 kgs	5 kgs
外型尺寸	36x65x78 cm	36x65x78 cm	36x65x78 cm
外型尺寸-包括週邊	89x65x78 cm (With Cabinet)	90x75x78 cm (With PC)	90x75x78 cm (With PC)
機器重量	60 kgs	60 kgs	60 kgs
選購配備
PC電腦		PC+19" Monitor+WIN-PRO	PC+19" Monitor+WIN-PRO
量測軟體		DMP3000, IK5000, MSU25D, M3	DMP3000, IK5000, MSU25D, M3
